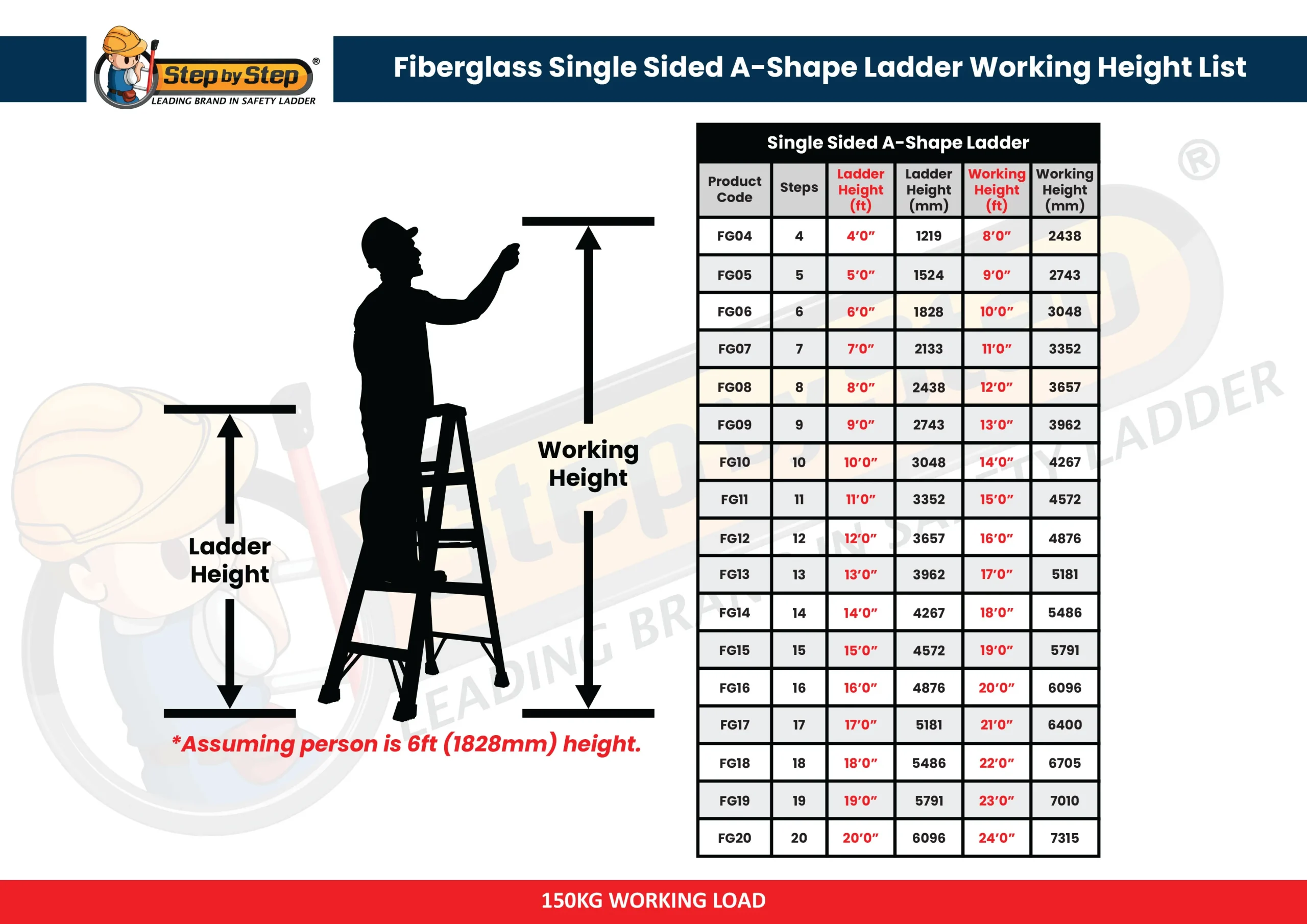

| Code | No. of Step | Height (FT) | Working Height (FT) | Weight (KG) |
|---|---|---|---|---|
| FG04 | 4 | 4’0” | 8’0” | 6.26 |
| FG05 | 5 | 5’0” | 9’0” | 7.60 |
| FG06 | 6 | 6’0” | 10’0” | 8.82 |
| FG07 | 7 | 7’0” | 11’0” | 10.08 |
| FG08 | 8 | 8’0” | 12’0” | 11.72 |
| FG09 | 9 | 9’0” | 13’0” | 13.37 |
| FG10 | 10 | 10’0” | 14’0” | 15.04 |
| FG11 | 11 | 11’0” | 15’0” | 17.26 |
| FG12 | 12 | 12’0” | 16’0” | 21.64 |
| FG13 | 13 | 13’0” | 17’0” | 24.50 |
| FG14 | 14 | 14’0” | 18’0” | 27.39 |
| FG15 | 15 | 15’0” | 19’0” | 29.71 |
| FG16 | 16 | 16’0” | 20’0” | 32.03 |
| FG17 | 17 | 17’0” | 21’0” | 34.35 |
| FG18 | 18 | 18’0” | 22’0” | 36.67 |
| FG19 | 19 | 19’0” | 23’0” | 38.99 |
| FG20 | 20 | 20’0” | 24’0” | 41.31 |
Ensure you choose the correct working height for safe and efficient use.
