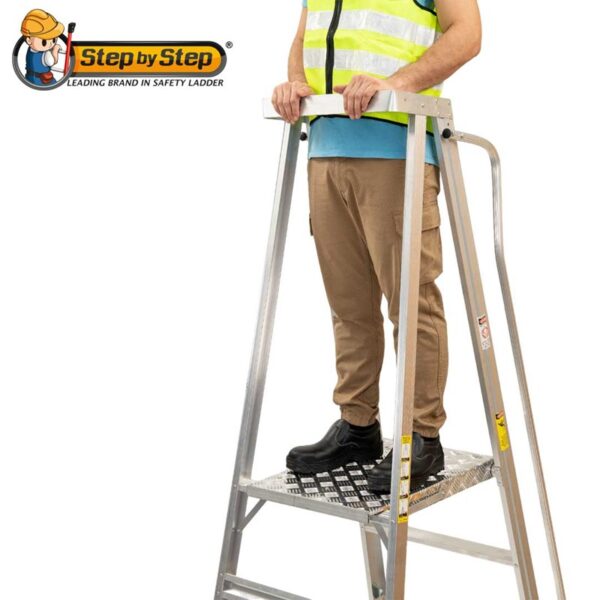

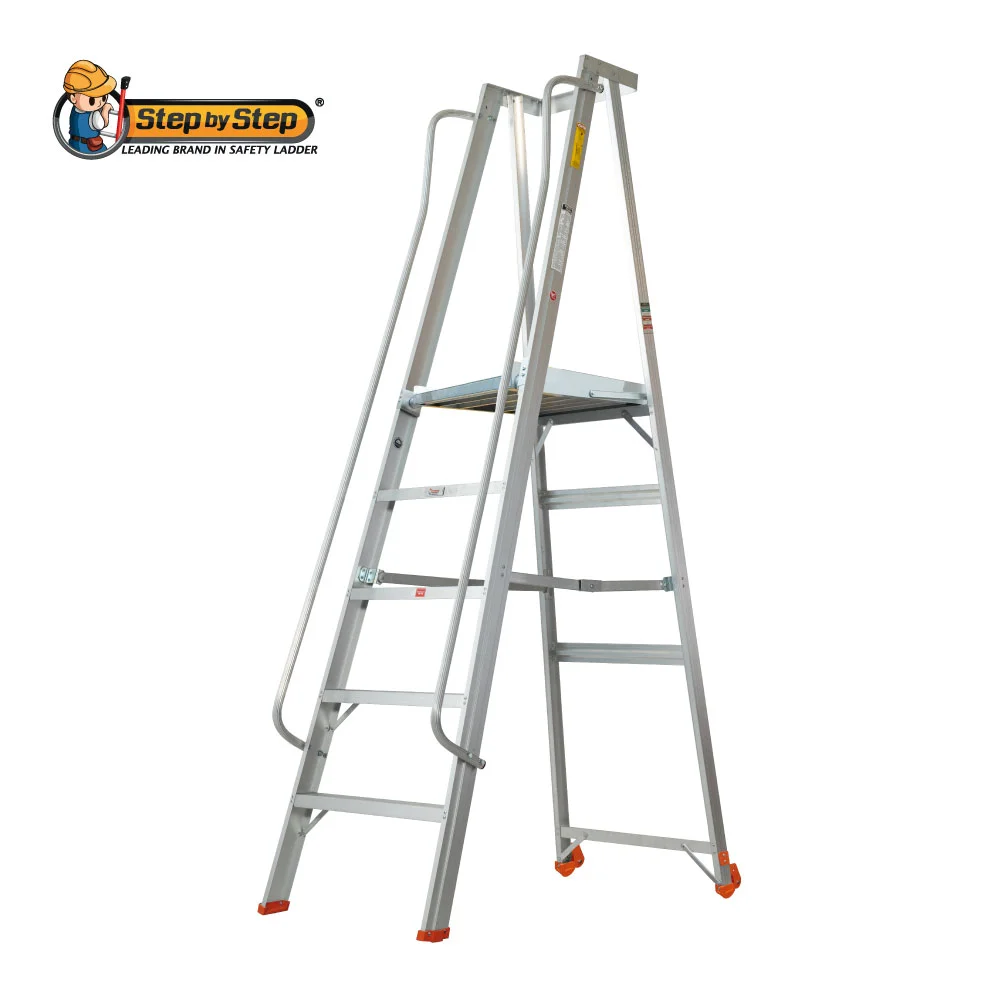

Aluminium Platform Trolley Ladder

(PTL)

3 - 10 steps

75°

150kg

Aluminium

Subject to Requirements

BENEFITS

Spec

Additional Accessories

HOW TO WORK WITH US

Comes with:

Extremely durable to withstand heavy workload
Foldable hence easy to store

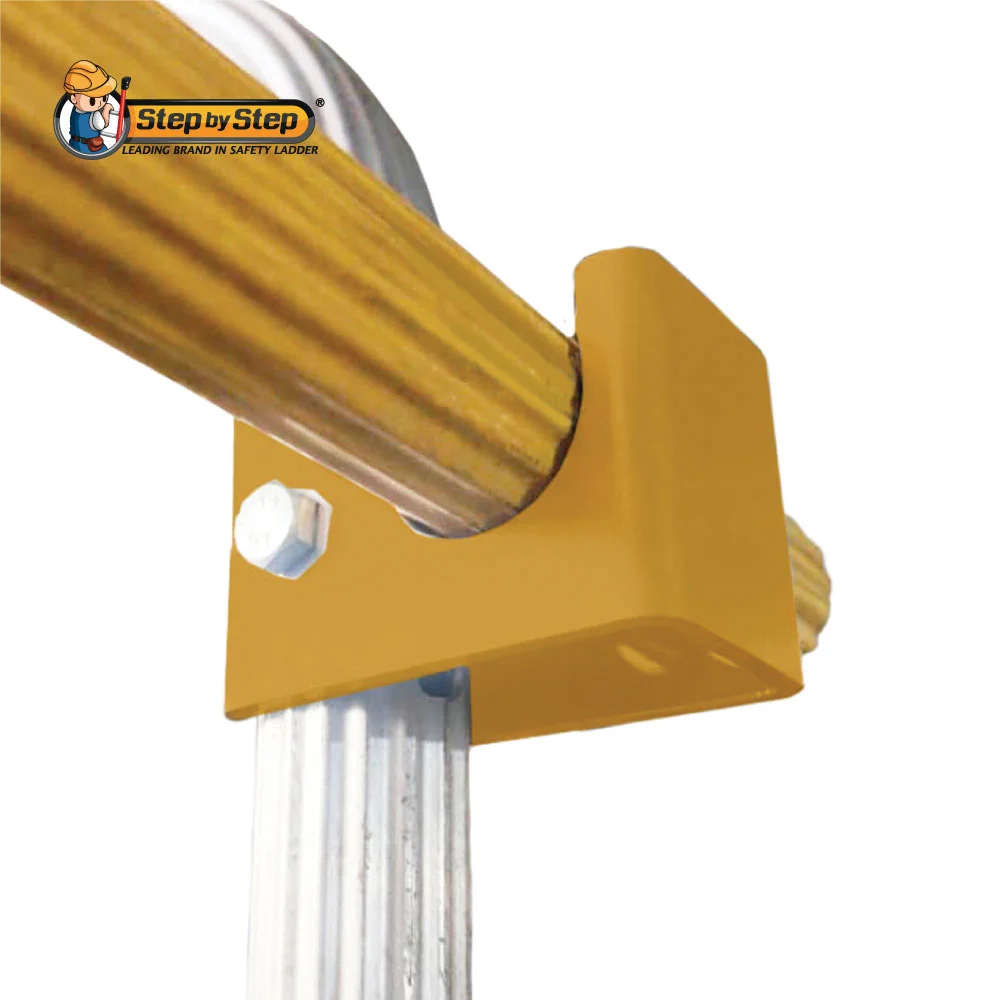

Sturdy safety guardrail

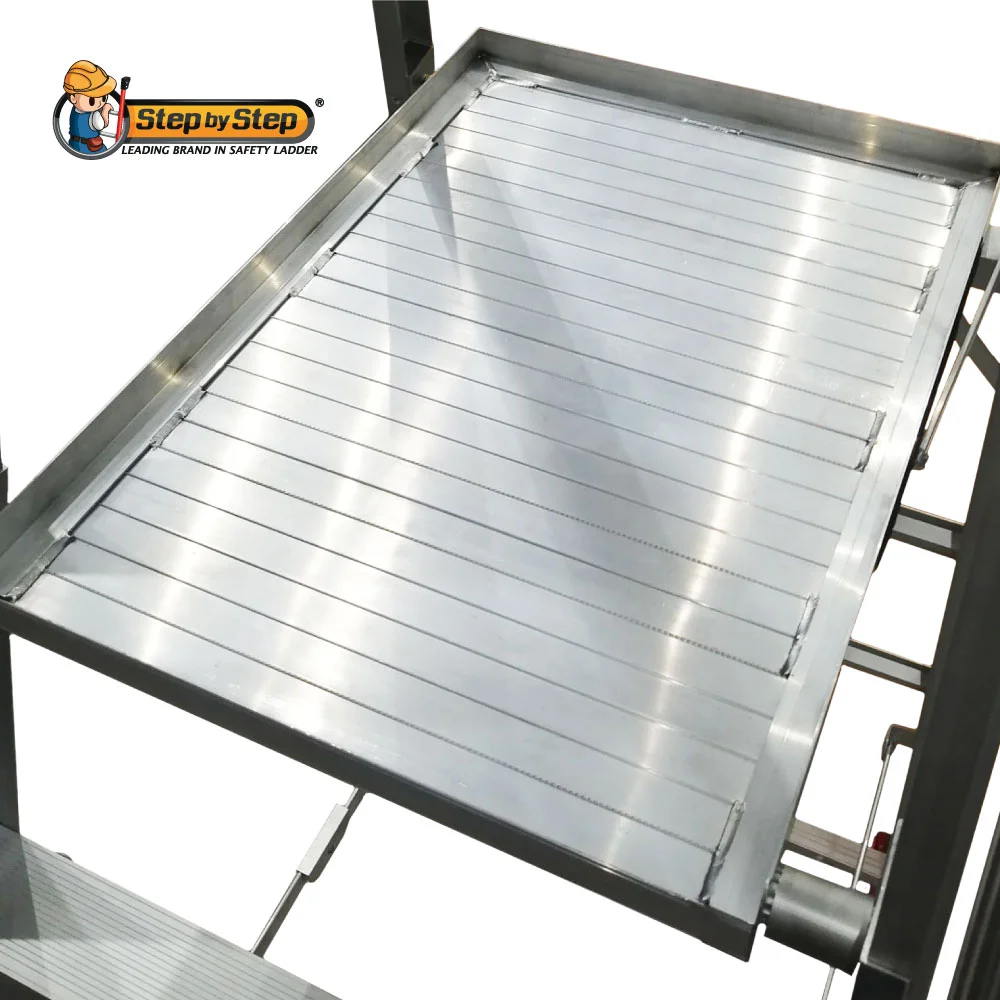

Wider checker plate platform for a convenient and comfortable working area
Anti-slip handrail to support user in climbing
Solid internal spreader hinge
Anti-slip steps features

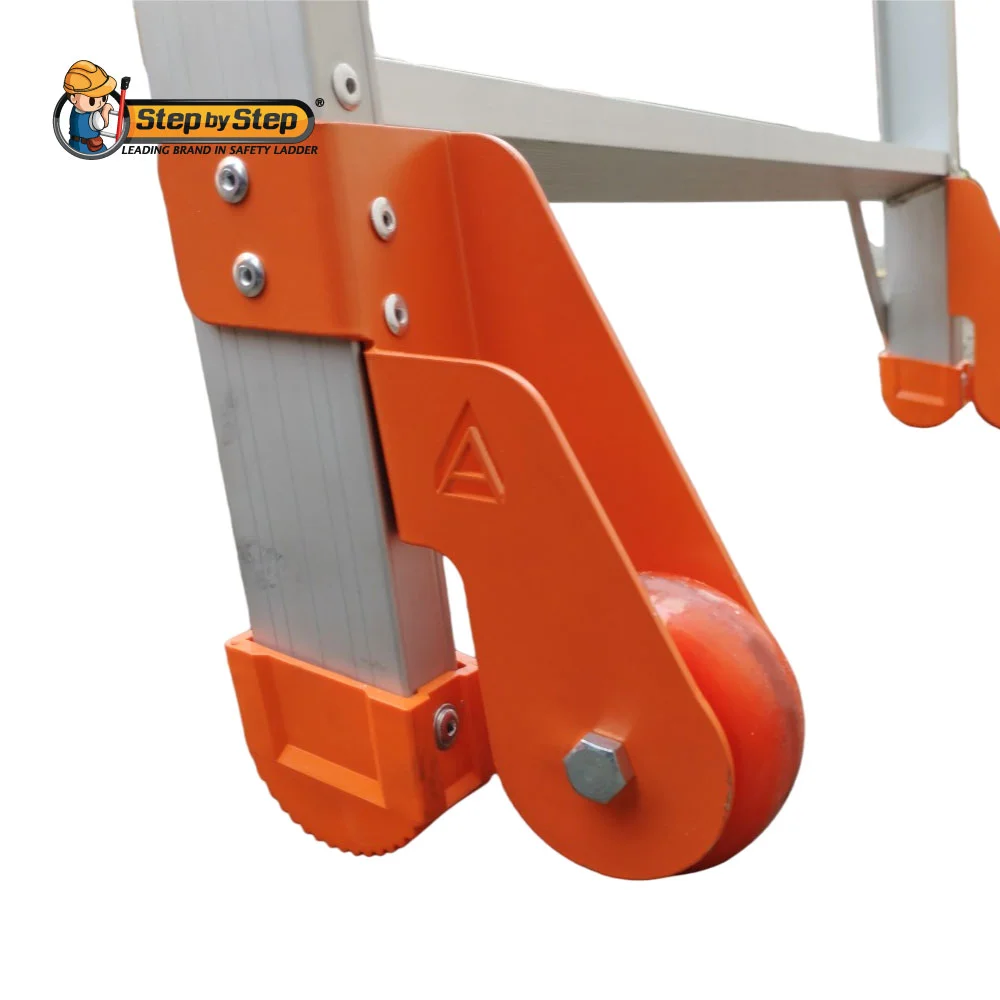

Non-marking castor wheel with bigger rubber shoes

Designed For

Ideal for factory, warehouse & construction heavy duty application.

Requirements

We offer customization. To get a detailed quote from us, kindly include the following specifications in the ‘Message’ section of the Enquiry form below:

Detailed dimensions
Aluminium ladder material: AA6061/ AA6063/ AA6082/ AA6005
Preferred ladder finishing: MF/ NA/ Powder Coated/ Wood Grain
Quantity required
Photo of the installation area
Existing ladder photo (if any)

Or else, email us your detailed technical drawing with dimensions by clicking the EMAIL NOW button below!

Notes:

The product is packed in CKD system/ based to your requirements.
Shipment Term: Ex-factory or FOB Port Klang, Malaysia.

PRODUCT CODE	HEIGHT (MM)		WEIGHT (KG)	PACKAGING DEMENSION (MM)
PRODUCT CODE	LADDER	PLATFORM	WEIGHT (KG)	PACKAGING DEMENSION (MM)
PTL03	1916	915	12.29	2065 x 670 x 270
PTL04	2213	1211	13.68	2370 x 700 x 270
PTL05	2517	1515	15.37	2675 x 730 x 270
PTL06	2817	1813	16.93	2980 x 760 x 270
PTL07	3117	2115	18.42	3280 x 795 x 270
PTL08	3408	2412	20.37	3585 x 830 x 270
PTL09	3707	2713	22.63	3890 x 860 x 270
PTL10	3994	3000	24.02	4195 x 890 x 270
WORKING LOAD : 150KG

Need a specific height, width, or finishing?
We are able to do customization.

Tool Box

For user to place and organize their working tools.

Safety Gate

Gate that securely wraps around safe work zone.

Toe Box

To ensure user working equipment stay in place and does not fall off.

Bottom Support

To enhance ladder solidity.

Spring Loaded Castor Wheels (4pcs/ Set)

Designed to absorb shocks which result in smoother movement.

Leg Stabilizer

For added stability and to hold ladder in position while at work.

Safety Gate Catch

Solid and Secure Locking System
